10X Front Lens Night Vision Magnifier Objective Lens

Get clear, amplified night vision with our 10X Front Lens Night Vision Magnifier Objective Lens. As a factory, we guarantee top-quality optics and performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
10x
Certification
CE
Customized
Non-Customized
Coating
HMC
Transport Package
Soft Protective Bag or Hard Shipping Case
Specification
1650g
Trademark
Daking
Origin
Guangdong, China

Product Description

A:Product description:

★ Quasi third-generation image intensifier tube (can also be equipped with ultra second-generation image intensifier tubes)
Not only does it have the characteristics of durability, but it is also finely crafted
★ This product can be connected to digital cameras, cameras, camcorders, mobile phones, etc. for nighttime shooting and use
★ Ultra strong infrared intensifier for enhanced viewing effect
★ Battery cover spring embedded
★ Equipped with IP67 waterproof and dustproof level (optional)
★ Built in infrared indicator light and low battery indicator (displayed in the eyepiece)
★ Multilayer coating standard: Ultra wide band multilayer Anti-reflective coating can inhibit the broadband reflection of the glass surface of the lens, reduce the light loss, and make more light pass through the lens to obtain good observation effect
★ Built in reticle for distance measurement
★ Standby zero consumption: When not in use for a long time, there will be no power loss when the battery is placed in the battery compartment
The dual focus mode is easy to operate, ensuring both long-distance viewing and image clarity
★ The alloy body has stronger airtightness, not only has a sturdy and durable appearance, but also has an increased level of waterproof and dustproof
★ The design of the anti leakage eye mask increases concealment


B:Specifications:

Item 7X
Image intensifier level Quasi third generation
Resolution (lp/mm) 65-72
Type of negative pole surface Gallium arsenide
Signal to noise ratio (dB) 21-24
Optical sensitivity (microamperes/lumens) 650-850
Time between failures (hours) ten thousand
Magnification rate 10x
Field of view (degrees) six
Visual adjustment range (diopter) -1
Lens system F1.3, 130mm
Objective adjustment range (m) 18-- ∞
Volume (mm) 330X1330X1330
Weight (g) one thousand six hundred and fifty
Power supply voltage (v) 2.0-4.2
Battery type 1X CR123A lithium battery
Continuous working hours 80 (without infrared)
  40 (turn on infrared)
Operating temperature range (° C) -0.666666667
Protection grade IP67
Target reconnaissance range (meters) 10-1200 meters

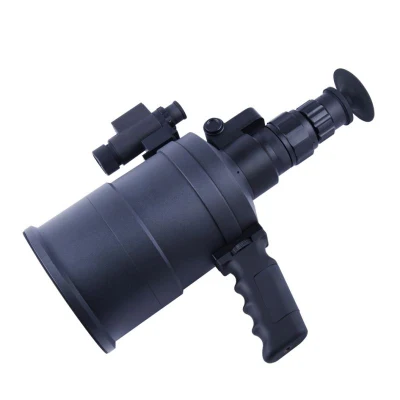

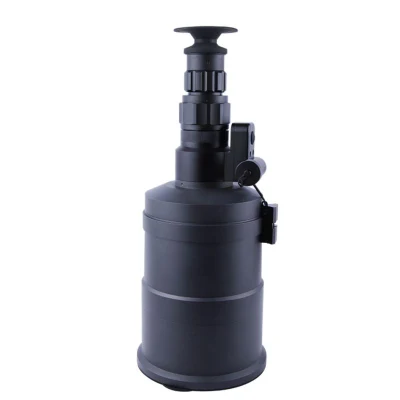

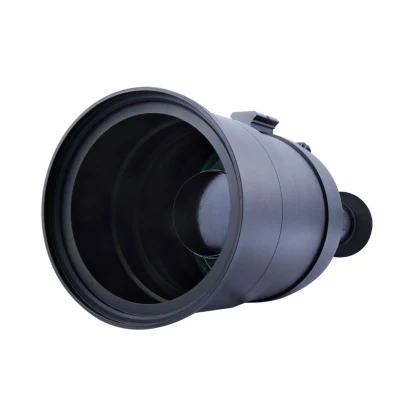

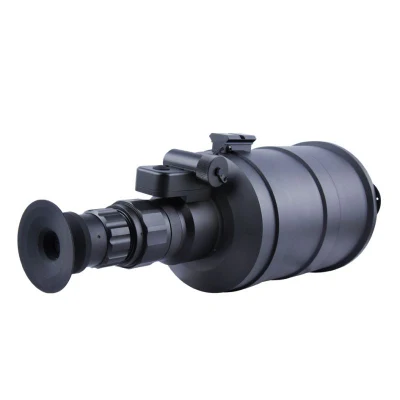

C:More Pictures:
10X Front Lens Night Vision Magnifier Objective Lens10X Front Lens Night Vision Magnifier Objective Lens10X Front Lens Night Vision Magnifier Objective Lens
