Basic Info.
Model NO.
HPC-5030C
Certification
CE, ISO, RoHS FCC
Alarm Form
Display Alarm
Model
Hpc-5335
Brand
Peacentury
Tunnel Size
530*350mm
Character
Multi Energy
Function
Checking Luggage
Max Loading
150kg
LCD Screen
20 Inch
System
Windows
Steel Penetration
36mm
Transport Package
Polywood Case
Specification
345KG/unit
Trademark
PEACENTURY
Origin
China (Mainland)
HS Code
9022191090
Production Capacity
500PCS/Month
Product Description

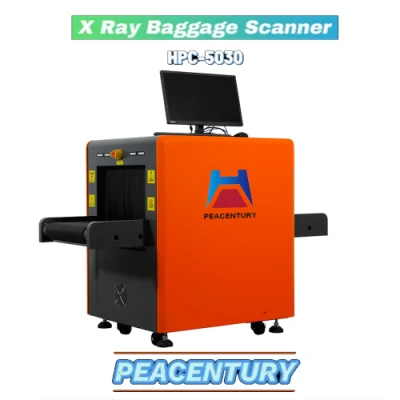

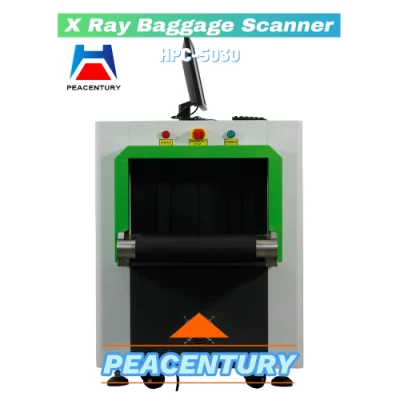

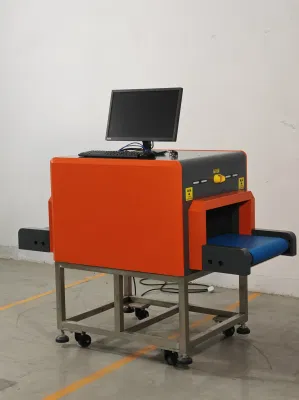

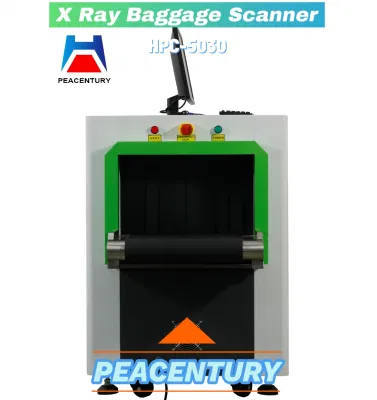

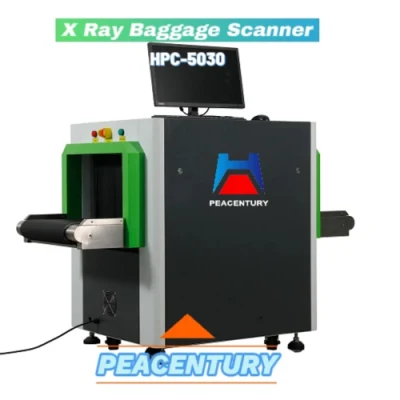

AI X Ray Luggage Baggage Parcel scanner Airport Douane Hotel Security Inspection Machine
Summary:
The X-ray use penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Used in the factory testing of security products and business units such as: airport, electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.
It can automatically detect the foreign matter (metal, stone, glass, plastic) in food which cannot be seen by naked eye.Bone, etc.) and the internal defects of the product (Void, cracks) device, with the basic function of automatic detection of foreign bodies, can also detect the packaging products left behind and defective products.
X Ray Baggage Scanner Paramenters
| Basic parameters | Operating environment | ||
| The tunnel size | 500(W)*300(H)mm | Operating temperature/humidity | 0ºC ~ 45ºC/ 20% ~ 95% (non-condensing) |
| Conveyor Max Load(kgs) | 100kg | Storage temperature/humidity | -20ºC ~ 60ºC/ 20% ~ 95% (non-condensing) |
| Conveyor Speed(m/s) | 0.22 | Operating voltage | 220VAC (±10%) 50±3HZ |
X-Ray Generator
| Orientation: | Upward |
| Tube Current: | 0.4~1.2mA(adjustable) |
| Anode Voltage: | 100~140KV(adjustable) |
| Angle: | 80° |
| Generator cooling/working periods: | Sealed oil bath with forced air/100% |
Operating Environment
| Noise | <65DB |
| Storage Temperature: | -20oC to 60oC |
| Operating Temperature: | 0oC to 45oC |
| Power wastage: | 1.0 KW (Max) |
| System Power: | 220 VAC (±10%) 50±3HZ |
| Relative Humidity: | 20 to 95% non-condensing |
| X-RAY Sensor: | L-shaped array detector, 24bit, Dual energy |
Image Performance System
| Display: | High-resolution 20 inch color LCD display |
| Color quality: | 12-Bit real colors based on materials |
| Edge enhancement: | Object contour edge is more distinct |
| Super image enhancement: | Image detail is more distinct |
| High penetration display: | Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly |
| Low penetration display: | Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly |
| Magnifier: | Partial magnifying function |
| Brightening/dimming: | Increase/Decrease brightness of image |
| Image recurrence: | Display the previous twenty images and process any one of them |
| Image restoration: | Restore image to initial status |
| Image storage: | Real-time store any image and process it in operation status |
Multi-energy: High/ low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder
Neutral Packing: Q'TY: 1 PCS/Wooden Case
N.W.: 300 KGS
G.W.: 345 KGS
Package Size:1800*880*1300mm
