Basic Info.
Model NO.
xsp-113
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Rectangular Prism
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Bio Microscope
Model
Xsp-113
Power
5V500mha
Eyepiece
Wf10 Wf16X
Objective
4X 10X 40X ( Spring )
Transport Package
Foam Packing
Specification
37*28*24
Trademark
Sedumic
Origin
China
HS Code
9011800090
Production Capacity
50000/Year

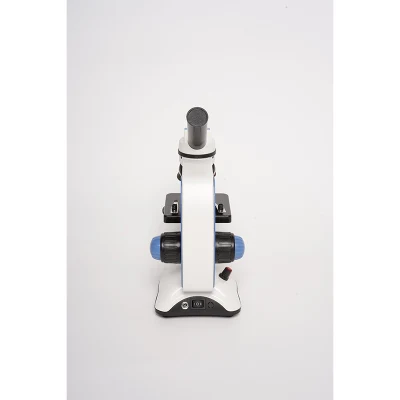

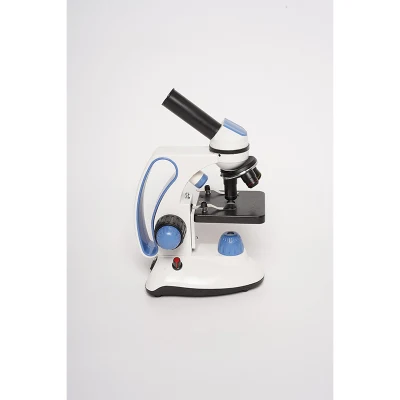

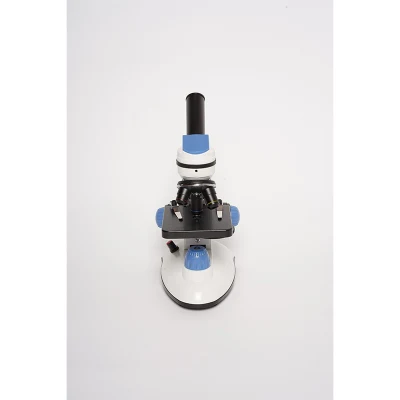

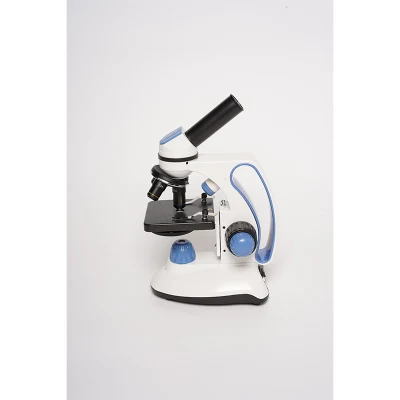

Product Description
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm WF16X;Total Magnification: 40X-640X |
| Objective | Achromatic Objectives: 4X,10X,40X(S) |
| Head | Monocular Head, 45°Inclined, 360°Rotatable |
| Stage | Double layers Mechanical Stage: 95X105mm, moving range: 50X20mm |
| Condenser | Single Lens Condenser: N.A.0.65; Φ2-Φ30mm Iris Diaphragm |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 17mm |
| Illumination | LED Lamp |
| Optional | 1.WF16X, WF20X; 2.Rechargeable Batteries 3.Top LED Lamp |
| Net Weight | 1.5kg |
FA Q Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the specimen and we will arrange professional engineers for proofing evaluation.
1) What is your product? required detailed specifiction?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this microscope, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the Microscope goes wrong?
We guarantee product quality for 36 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, Sedumic is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q6. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q7:Why should I choose Sedumic compared with other companys?
We are factory with 100 employees, turnover reached 100 millions USD in 2019, ISO 9001/13854 certificated and most products are CE/SGS/Rohs approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
