Basic Info.
Model NO.
VM-500
Transport Package
Plywood
Specification
CE
Trademark
SINOWON
Origin
Dongguan
HS Code
90318020
Production Capacity
20 Sets/Month
Product Description

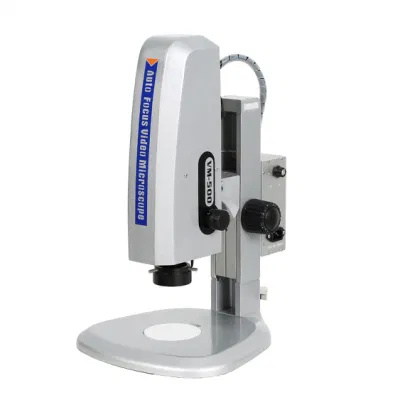

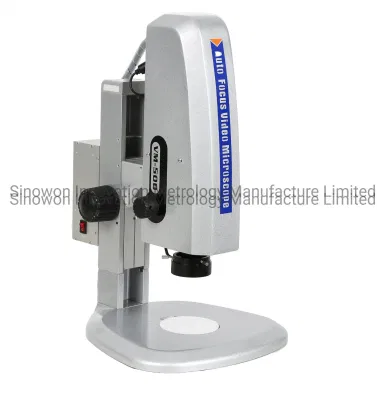

Auto Focus Video Microscope VM-500
Application:

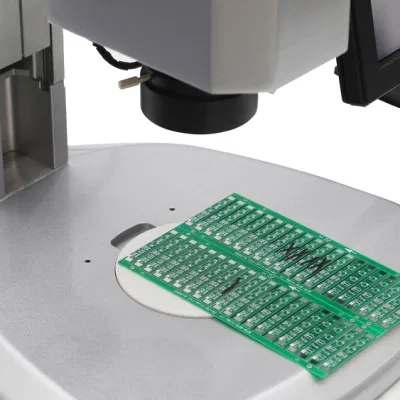

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Characteristics:
1. Fashionable Look with an Integration Design
2.Fast autofocus within 2 Seconds
3.Clear Image Presented by 2 Million Pixels HDMI Camera
4. Excellent Depth of Field and Long Working Distance Improve Observation Efficiency Tenfold
5.USB Storage for Photos and Videos
6. Avoid the Eyes Fatigue after Long-time Perusal*
* Compared with ordinary microscopes
2.Fast autofocus within 2 Seconds
3.Clear Image Presented by 2 Million Pixels HDMI Camera
4. Excellent Depth of Field and Long Working Distance Improve Observation Efficiency Tenfold
5.USB Storage for Photos and Videos
6. Avoid the Eyes Fatigue after Long-time Perusal*
* Compared with ordinary microscopes
VM500 Standard Configuration :
1.Change monitor. eg : update the 21.5"monitor to 27" ( Max:238x ) Or 43 " ( Max:380x)
2.Add 2x Auxiliary objective (Light source needs to be enhanced ):
23"max magnification:406X
27"max magnification:476x
43"max magnification :760x
Technical Specification:
| Product Name | Auto Focus Video Microscope |
| Model | VM-500 |
| Code# | 451-450 |
| Electronic Magnification | 33.47X~215.19X( HDMI 16:9 21.5"Monitor;) |
| Optical Objective | 0.7X~4.5X Zoom Lens |
| Zoom ratio:6.5:1 | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.8" | |
| Frames Per Second:30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output: HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |

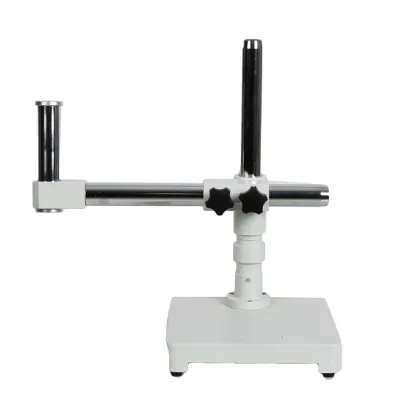

| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V;50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Standard Delivery:
| Product Name | Specification |
| Microscope Main Body | VM-500 |
| Power Adapter | DC5V(Camera),DC12V(Illumination) |
| Monitor | Optional 4:3 21.5" |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-500 |
