Product Description

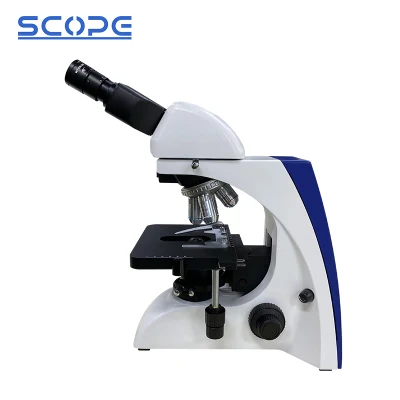

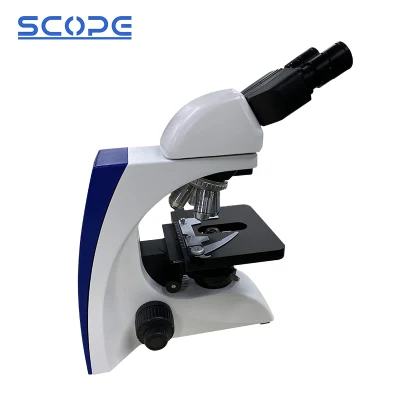

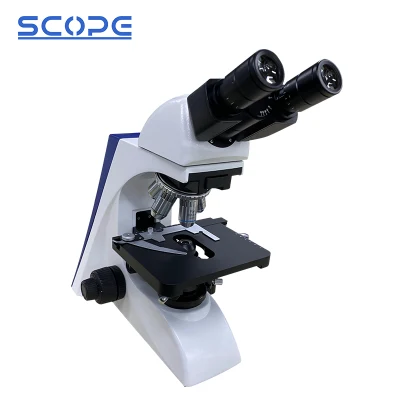

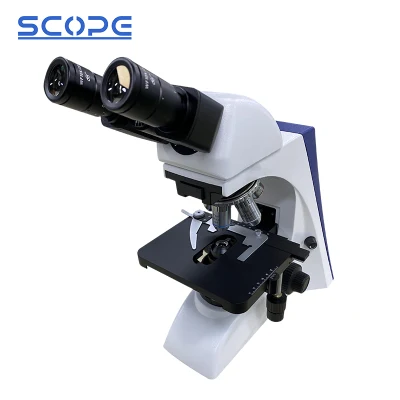

BK5000 Binocular Biological Microscope
BK series is a professional optical biological microscope, which is widely used in hospital clinical laboratory, university teaching and professional laboratory,and so on. Excellent infinity optical system for perfect resolution and definition. On the basis of this microscope, polarizing, dark field, digital head and other devices can be configured according to research requirements. Multiple configurations, multiple choices, simple operation, clear observation.
Our team has 20 years of experience in selling precision instruments. The company's microscope products cover nearly 80% of domestic products. Experienced in foreign trade, and have any qualification certificate for export.
1. The microscope connection voltage is 100V ~ 240V
2. The pupil distance of binocular microscope is 48mm-75mm
3. Flat field achromatic eyepiece with 4x / 10x / 20x / 40x / 100X
4. New low energy consumption LED cold light source, longer service life.
BK5000 Binocular Equipment Outfits | ||
Item | Specification | |
Eyepiece | WF10x/-20mm(23.2mm) | |
Infinity Plan Objective | Plan 4X/10X/20X(S)/40X(S)/100X(S,Oil) | |
Seidentopf Binocular Head | Inclined 30°, Rotated 360° Interpupilary Distance 48-75mm | |
Nosepiece | Quintuple | |
Mechanical Stage | Stage size175mm*145mm, Travel: 78mm*55mm Coaxial coarse and fine focusing knobs Two slide holder | |
Condenser | Abbe N.A.1.25 with iris diaphragm | |
Koehler Illumination | 3W-LED Illumination, wide voltage input: 110V-240v, field diaphragm, center adjustable | |
Packing Size | 542mm*265mm*355mm | |
Weight | 12KGS(Gross), 10KGS(Net) | |
Optional | ||
Infinity Plan Objective | Plan 2.5X/60x(S)/100X(S,W) | |
Seidentopf Trinocular Head | Inclined 30°, rotated 360°, Interpupilary Distance 48-75mm Light Distribution 0:100/80:20 | |
C-mount | 1X/0.5X/0.75X C-mount (Focus Adjustable) | |
Imaging System | 3MP digital microscope camera | |
5MP digital microscope camera | ||
12MP digital microscope camera | ||
9.7inches LCD tablet camera (Built-in 5MP camera) | ||
Mechanical Stage | Integrated Stage Stage Size: 182mm*140mm, Travel: 77mm*52mm Two Slide Holder | |
Condenser | Swing-out Condenser, N.A 0.9/0.13 with iris diaphragm | |
Koehler Illumination | 12V/20W Halogen Lamp | |
6V/30W Halogen Lamp | ||
Filter | Blue | |
Green/Amber/ Grey | ||
Fluorescence attachment | Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G and another filters), 100W mercury Lamp | |
Epi Fluorescence Unit(six-hole disc media which can be fixed with Uv/V/B/G), 5W-LED Fluorescence lamp | ||
Phase Contrast Unit | Quintuple hole turret 10X/20X/40X/100X phase contrast objective | |
Independent Slot 10X/20X/40X/100X phase contrast objective | ||
Dark Field Unit | Dark field condenser(dry), apply to 4X-40X objective | |
Dark field condenser(wet),apply to 4X-40X objective Note: Using wet dark field condenser must add oil immersion | ||
Polarizing Attachment | Analyzer/ Polarizer | |
The Packing Size of BK5000 microscope is 542mm×265mm×355mm, and Gross Weight is12 kgs, Net Weight is10kgs.
Packed in neutral cartons. No logos or nameplates, etc. The transportation of products supports express delivery, sea transportation, air transportation, etc., and various transportation methods are available.
Our microscopes are all processed and produced in clean workshops. Microscope workshops include metalworking workshops, optical workshops, assembly workshops, assembly workshops and packaging workshops. Our factory has more than 20 years of production experience, the performance of the microscopes produced is stable, and the configuration is constantly updated and optimized. Our factory has obtained various qualification certificates, such as ISO9001, CE, ISO14001 and so on.
1. what's your product usage range?
------Our products is widely used in the field of laboratory, college and university education. Agriculture, industry, petroleum, geology and medical unit.
2. What's you popular products?
-------Most of our products are very popular in many countried, like microscope, metallographic equipment. And now we also sale medical manikin.
3. How about your warranty?
------We supply 1 year warranty. During this period, we provide online technical support. If parts need to be replaced according to specific conditions, please communicate with our sales personnel
4. How can I choose the suitable one?
------Please tell us your detailed requirements by mail or online,we will recommend the suitable one as your reques
5. How to deliver?
------The first choice is express shipping, followed by air and sea freight. Also we can deiver it by customer's frwarder.
6. How can I pay?
-----We accept many payment term, such as T/T, Western Union and so on.
