Basic Info.
Model NO.
CX43
Mobility
Desktop
Kind of Light Source
Cold Light
Usage
Teaching, Research
Principle
Optics
Transport Package
Carton
Specification
1600x
Origin
Shanghai
HS Code
9011809090
Production Capacity
100PC/Month
Packaging & Delivery
Package Size
45.00cm * 85.00cm * 68.00cm
Package Gross Weight
8.000kg
Product Description
olympus microscope
CX23 Specifications: | Model | CX23LEDRF (S1/S2) |
| Body | Aluminum die-casting metal frame, Protective covering |
| Optical System | Infifi nity optical system |
| Illumination System | Built-in transmitted illumination system, LED Power Consumption 0.5 W (nominal values) |
| Focusing | Stage height movement (coarse movement stroke: 15 mm), coarse adjustment limit stopper, Torque adjustment for coarse adjustment knob, Fine focus knob (minimum adjustment gradations: 2.5 µm) |
| Revolving Nosepiece | Fixed quadruple nosepiece |

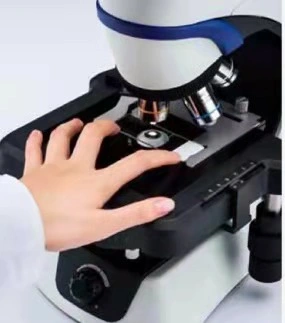

| Stage | Wire movement mechanical fifi xed stage Traveling range: 76 mm (X) x 30 mm (Y), Specimen holder, Specimen position scale |
| Observation Tube | 30º inclined binocular tube Interpupillary distance adjustment range: 48 - 75 mm, Eyepoint adjustment: 370.0 - 432.9 mm |
| Objectives | Plan achromat, anti-fungus 4x NA: 0.10 W.D.: 27.8 mm 10x NA: 0.25 W.D.: 8.0 mm 40x NA: 0.65 W.D.: 0.6 mm 100xOil NA: 1.25 W.D.: 0.13 mm (CX23LEDRFS1 only) |
| Eyepiece (10x) | Field Number (FN): 20 (anti-fungus) |
| Optional Accessories | Reflfl ection mirror (CH20-MM), 15x eyepiece (WHSZ15X-H: FN 12, anti-fungus), Dedicated wooden case, Eyepiece micrometer, Darkfifi eld stop (CH2-DS+CH2-FH) |
| Weight | Approx. 5.9 kg |
| Rated Voltage/Electric Current | AC 100-240 V 50/60 Hz 0.4 A |
| Power Consumption | Less than 2 W |
